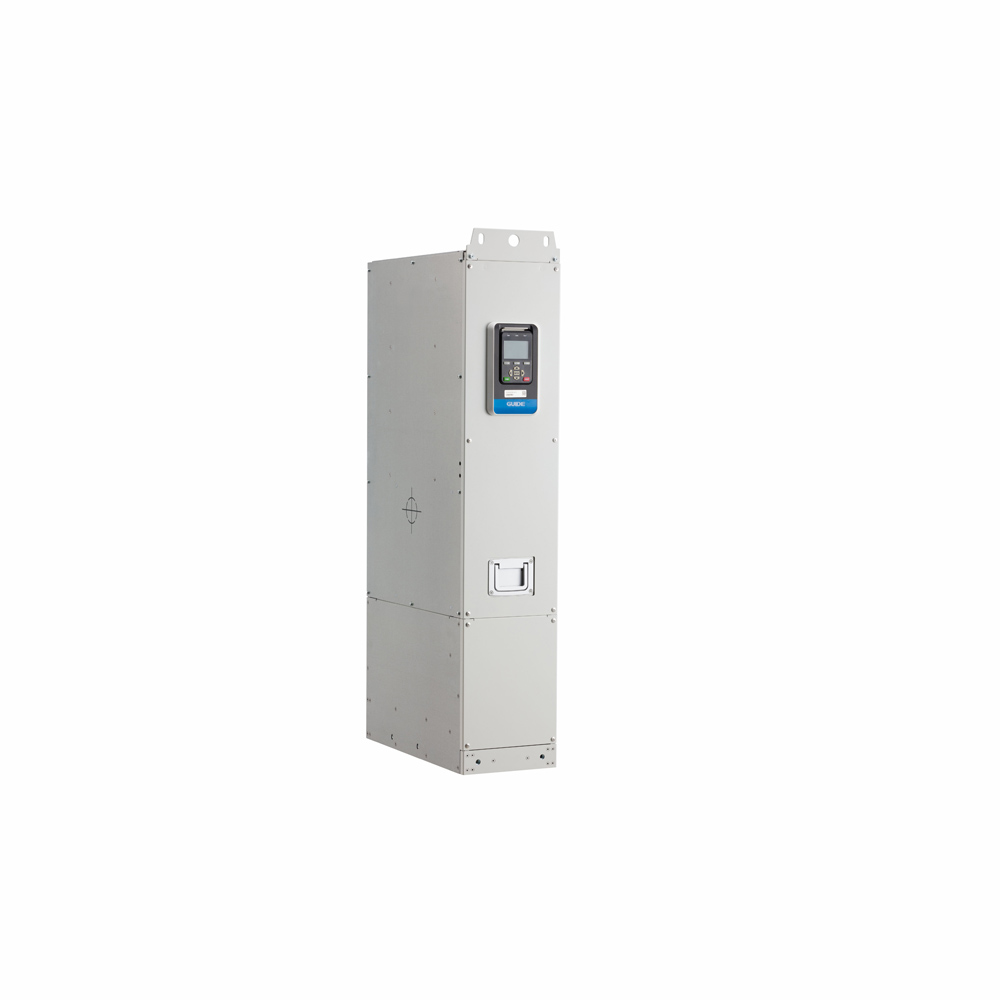

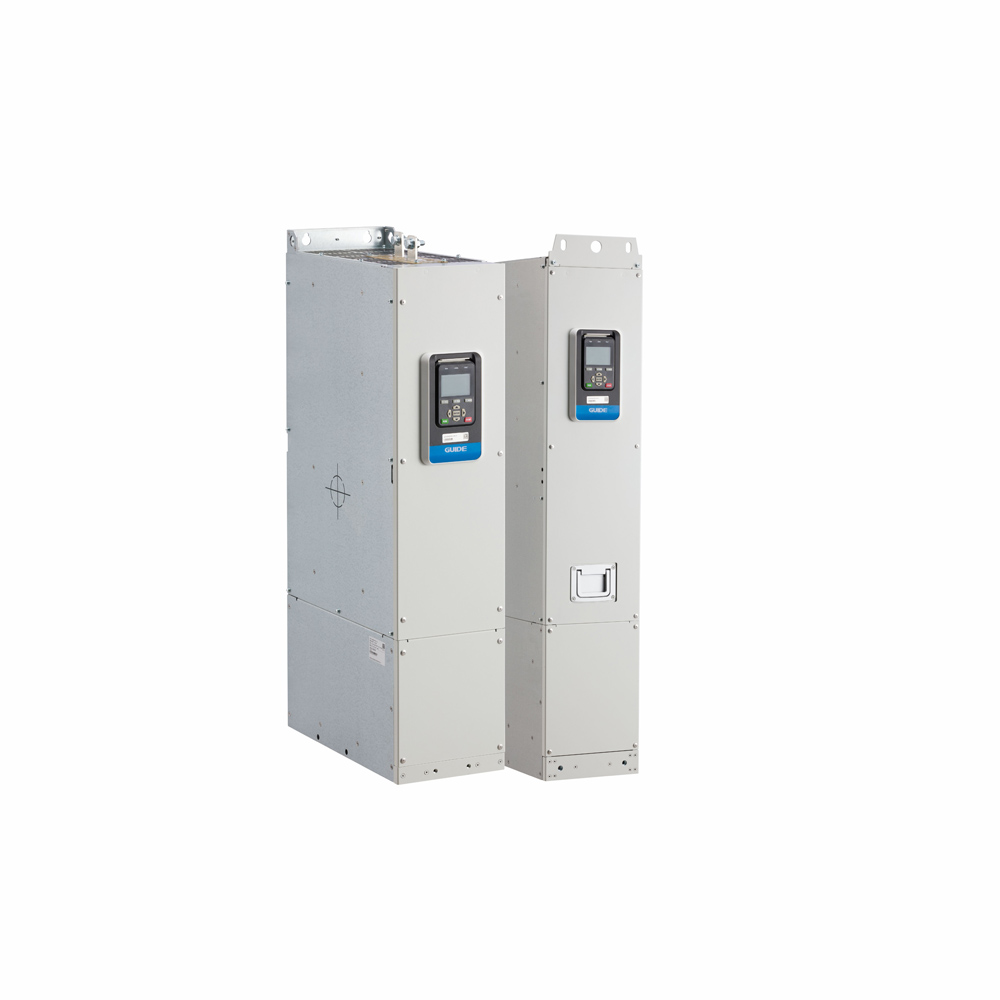

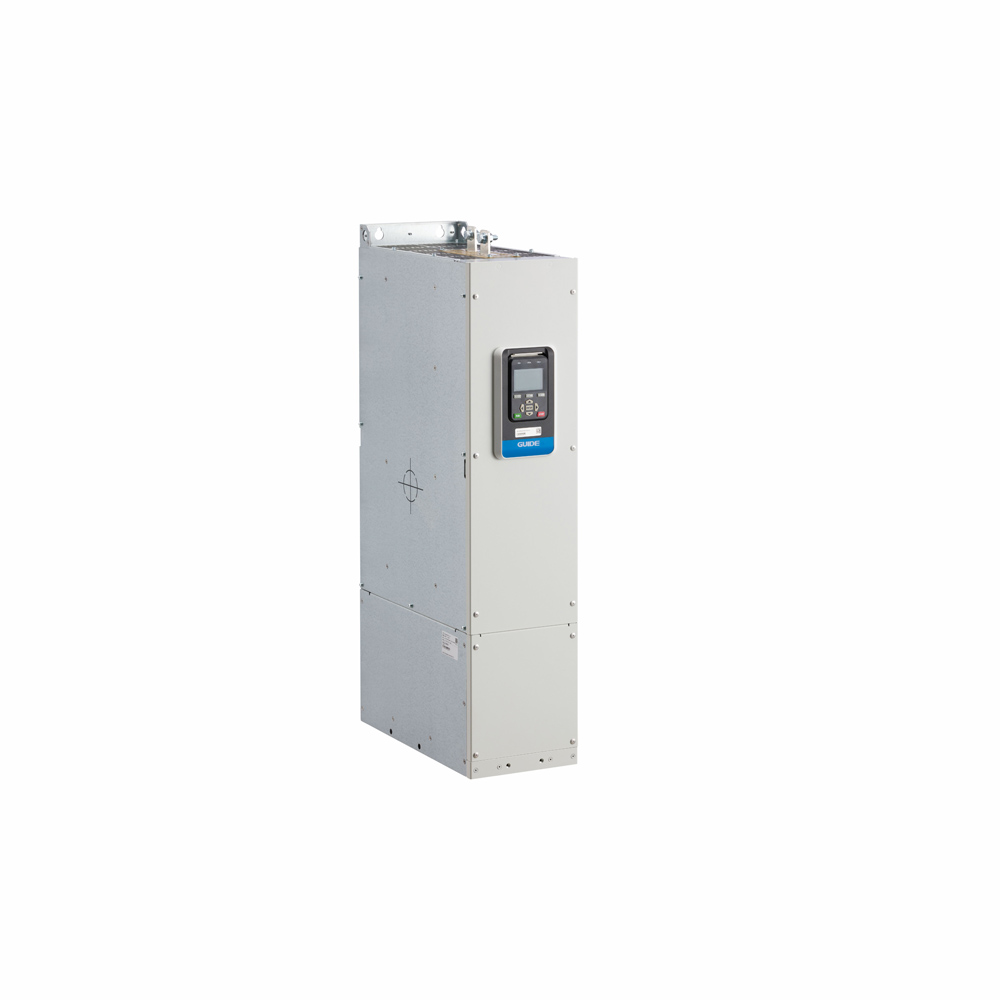

HF680N09F Series Bidirectional DC-DC Drive

The HF680N09F Series Bidirectional DC-DC Drive consists of DC chopper, DC inductors, and filtering units. The DC-DC direct current conversion system can convert the high-voltage side power supply into a low-voltage power supply for the load side, and vice versa, enabling bidirectional energy flow and rational energy distribution.

Inquiry
Share
Facebook Twitter Google+ LinkedIn
  • Features
  • Specification
  • Application
  • Download



Product Features:

◎  Suitable for applications requiring bidirectional energy flow.

◎  The bidirectional DC-DC drive is equipped with an independent control board. It allows control via the panel, terminals, or communication.

◎  The bidirectional DC-DC drive offers both voltage and current modes, enabling operation in charging, discharging, and automatic control modes.

◎  The downstream stage of DC-DC system can be connected to batteries, capacitors, and other DC-powered electrical devices, etc.
